CAD comparison
Compare CAD data with a 3D scan. How far does your component deviate from the original design?
Optical 3D Measurement of Components with 0.005 mm Accuracy
3D scans from€149/scan
Safeguard the quality and accuracy of your components and objects. With our 3D measurement technology we help you detect deviations from target specifications and digitise components effectively with a precision of up to 0.005 mm. Whether for reverse engineering or quality assurance inspection – we can help.
Do you have a specific requirement?Tell us what you need – we will get back to you within 24 hours and advise you in detail on possible solutions and suitable methods.
5µ
0.005 mm measurement accuracy with our most precise devices.
€149
Your cost per single scan as the basis for downstream processes.
24h
We offer fast communication & turnaround times.
Size
We measure objects from just a few centimetres up to larger items.
Your partner for 3D component measurement
Our 3D scanners are among the most technologically advanced devices in the industrial sector. Thanks to contactless measurement, the component is captured gently. This makes the process particularly suitable for one-offs, industrial prototypes or parts for which no drawings exist.
Depending on their needs, customers can receive just the 3D file (often in STL format) to carry out their own comparisons or modelling. However, we also offer additional services such as creating technical drawings or modifying the design. Simply let us know your requirements.
From small businesses to enterprise manufacturers and universities:Hundreds of companies rely on us and our 3D scanning solutions

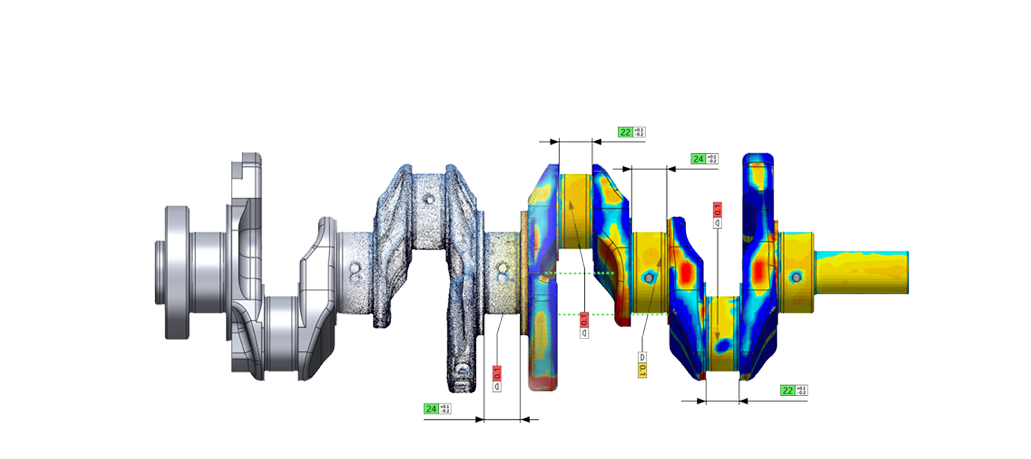

3D measurement in quality control
At Scankraft we use state-of-the-art 3D scanning technology in quality control to ensure the highest precision and reliability in our products.
Our advanced 3D scanners capture every detail of our products and enable a comprehensive analysis that goes far beyond traditional measuring methods. This not only speeds up the quality inspection process but also allows us to detect and correct defects at an early stage. With Scankraft at your side, you can be confident of receiving products of the highest quality.

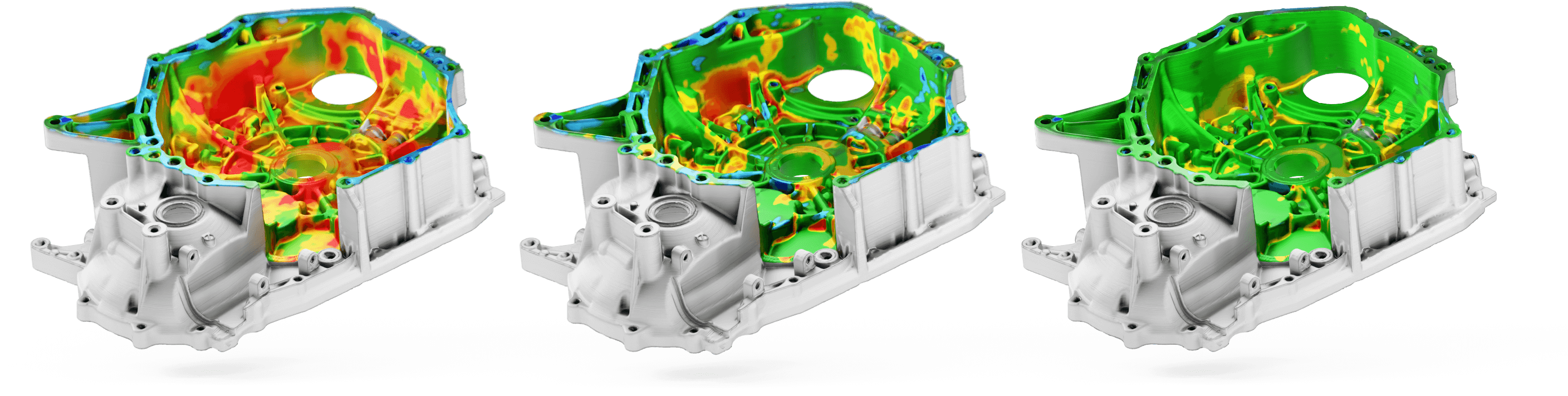

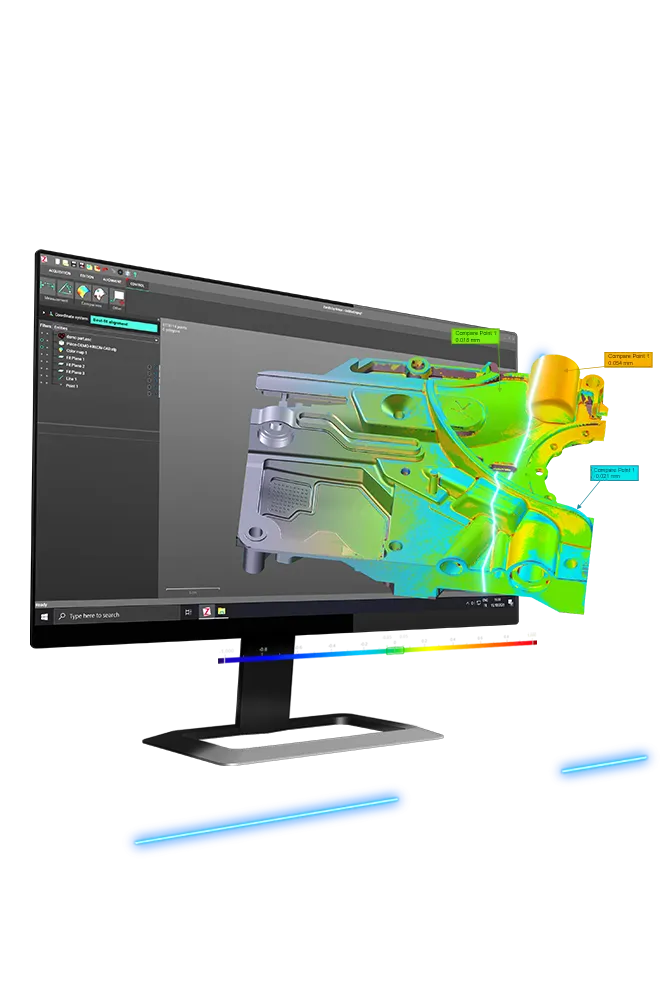

In addition, our 3D colour mapping gives you a quick overview of deviations from the CAD model.
Component reverse engineering with scan to CAD
We will be glad to help you with the reverse engineering of parts and other components, converting our precise 3D scans into a CAD file that you can continue working with.

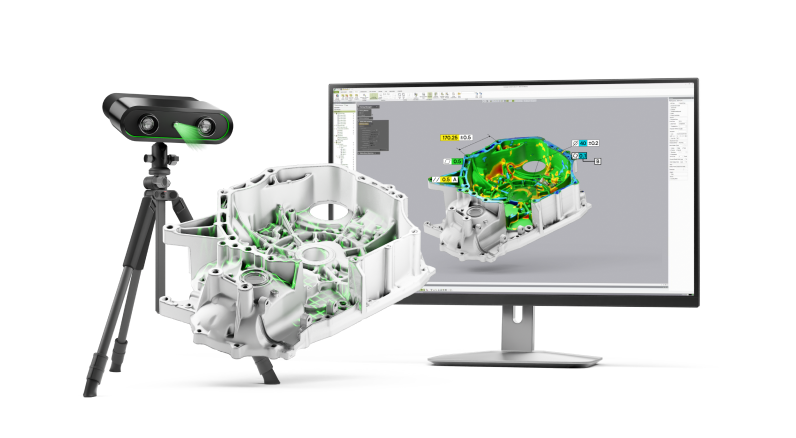

Precise 3D component measurement
Is maximum precision on surfaces important to you? With our industrial 3D scanner we can scan your part to an accuracy of up to 0.005 mm.
For large objects of several cubic metres, the accuracy decreases slightly. We will be happy to calculate the achievable precision for you.
What is more, our detailed measurement with up to 1.86 million measuring points per second allows us to capture even the finest details of the component.
What are the benefits of measuring components with a 3D scanner?
Optical 3D measurement systems capture the geometry of components without contact, quickly and precisely.
Compared with conventional tactile measuring methods, they allow higher measuring speeds while offering greater accuracy and a higher information density. This means defects and deviations can be detected and corrected at an early stage, leading to improved product quality and greater process efficiency.
A key advantage of 3D scanning technology is that capture is completely contact-free, which makes the measurement particularly gentle on the object. This method is therefore especially suitable for capturing individual objects, such as industrial prototypes or older components for which no drawings exist. In general, 3D scanning is ideal for any touch-sensitive objects.
Precise 3D component measurement
High-quality component scans from €149
For our services we charge a minimum order fee of €149. Around 80% of single scans can be completed within this flat fee; any work beyond that is charged at €110 per hour.
Individual quotes
Do you need scans for larger quantities of objects, further services for your 3D scan data such as conversion to a CAD model, or would you like an individually calculated quote from us? Contact us with your request and you will receive a reply within 24 hours.
How your project works
- 01
Project briefing
Send us your project and we will get back to you by phone or e-mail to discuss the details.
- 02
Consulting & quote
Based on your requirements we prepare a quote – and you can count on a fast turnaround.
- 03
Project delivery
We scan your object on site or in-house at our facility in St. Florian/Asten near Linz. You receive the raw 3D scan files, or we create a CAD file or further design drawings.
- 04
Additional services
We also offer optional additional services – feel free to take a look at them below.
Service portfolio
Additional services
We offer an extensive portfolio of additional services that you can book directly or as a follow-up.
02
Object comparison
Before / after analyses following use. Ideal for assessing wear, abrasion and changes to a component.
03
Additive manufacturing
Need your component produced in series? Our additive manufacturing service can help.
04
Colour mapping
Colour-coded, easy-to-read visualisation of surface deviations.
05
Reverse engineering
More about reverse engineering and turning 3D scan data into usable CAD data.
06
Technical drawings
Standard-compliant technical drawings based on 3D scan data, CAD models or existing components.
Your contact person:Dipl.-Ing. Lukas Patri
Surveying engineer at Scankraft GmbH
More than a decade of experience in metrology, industrial surveying, laser scanning and more.
We have measured and digitised a wide range of objects – components, entire machines, plants, power stations, people, buildings and industrial facilities with all kinds of surface textures & materials. We would be glad to help you with your project, too!
Frequently asked questions
If our FAQ does not answer your question, simply send us an inquiry, an e-mail or give us a call – we are happy to help.
How does a 3D scan work compared with tactile measuring methods?
3D measurement of components is based on laser scanning or optical capture with a structured-light scanner. This produces a large number of measuring points that together form a point cloud. As our devices come from the industrial sector, we achieve a precision of up to 0.005 mm. Noise and errors are removed and the resulting point cloud is converted into an STL model.
How accurate are our 3D component measurements?
Accuracy depends on the object, its size and the post-processing. We can achieve an accuracy of up to 0.005 mm – please contact us for an exact assessment of accuracy & resolution.
How much does 3D component measurement cost?
3D component measurement costs €149 per component scan. If you need several measurements or additional services, we will be happy to prepare a quote for you.
How is sensitive data handled?
We treat our customers' data as strictly confidential – all data is hosted locally on our own backed-up systems (not in the cloud).
For data transfer, just tell us the method you prefer (e.g. your company's own cloud solution).
We are of course happy to sign an NDA if you wish.
